Heightmap import persisting error

[viridis]

Hi, I am trying to learn how to import heightmaps in order to collaborate with mapmaking, but find an error after importing the file. It is:

• BMP format
• 128x128 px
• 8 bit gray-depth but RGB color mode

I am using Linux x64 and 0ad version Pyrogenesis 0.0.21

After some time working, the editor opens a window with the following error:

Function call failed: return value was -120102 (Invalid/unsupported texture format)
Location: tex.cpp:124 (tex_validate_plain_format)

Call stack:

(0x8fc9ee) /usr/bin/pyrogenesis() [0x8fc9ee]
(0x8bd0e9) /usr/bin/pyrogenesis() [0x8bd0e9]
(0x8bd4b5) /usr/bin/pyrogenesis() [0x8bd4b5]
(0x8bd838) /usr/bin/pyrogenesis() [0x8bd838]
(0x8f250d) /usr/bin/pyrogenesis() [0x8f250d]
(0x8f36c4) /usr/bin/pyrogenesis() [0x8f36c4]
(0x8f4c56) /usr/bin/pyrogenesis() [0x8f4c56]
(0x81bea0) /usr/bin/pyrogenesis() [0x81bea0]
(0x7e23e3) /usr/bin/pyrogenesis() [0x7e23e3]
(0x7f9c7665f2e7) /usr/lib/libpthread.so.0(+0x72e7) [0x7f9c7665f2e7]
(0x7f9c763a054f) /usr/lib/libc.so.6(clone+0x3f) [0x7f9c763a054f]

errno = 0 (No error reported here)
OS error = ?

Any ideas? could you try my image and tell me if you are able to generate a map with it?

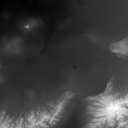

I have attached both the BMP and the original image file.

Messina.tif


[vladislavbelov]

As the error says, BMP format (with these settings) is not supported, you need to use BMP with right settings, the one of:

1. gray, 8 bits per pixel without alpha channel
2. colored, 24 bits per pixel without alpha channel
3. colored, 32 bits per pixel with alpha channel

About required format: https://trac.wildfiregames.com/wiki/Atlas_Manual_Heightmap_Import

UPD. Your BMP hasn't a gray flag (in other words it's colored), but it has 8 bits per pixel.

Edited May 12, 2017 by vladislavbelov
